Army Group North Miniatures

the finest quality 1/56th WWII resin vehicles





All prices are in US$.

Shipping is 20% on orders under $30.00, 15% from $30 up to $100.00, and just 10% for orders of $100.00 or more.

Our online shopping cart accepts payments from PayPal or from any major credit card. We will also accept US$ money orders if you email us your order directly.

Vehicle hulls and turrets are cast in resin, while gun barrels, hatches and other small bits are white metal. Vehicles, equipment, and figures are supplied unpainted and require some assembly.

Panzerkampfwagen IV (SdKfz 161) Ausf D

painting & photography by Kenneth Chipman

The first production version of the Pzkpfw IV came off the assembly line in 1936. The D model, built during 1937-1939 was once again fitted with a bow machine gun (which had been removed in the C model and replaced with a vision slit). After thorough trials of the vehicle in Poland, the Pzkpfw IVD (sd161) was “declared fit for service following its successful troop trials.”

Distinguishing Features: The pzkpfw IVD had eight double bogies, suspended in pairs from leaf springs; three return rollers; idler with narrow spokes; a tall cuploa at the rear of the turret; air grilles on the engine compartment decking; a short stubby gun; and a prominent driver’s compartment. The front MG was in placed in a ball mount and was manned by the wireless operator. A collapsible dipole aerial was mounted on the right side.

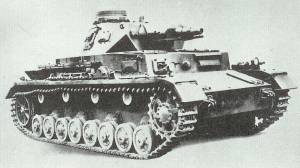

Leichte Panzers in Action (1974) Uwe Feist & Mike Dario

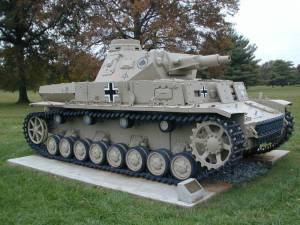

Aberdeen Proving Grounds, MD

Technical Data

production year

1937-1939





crew

5

combat weight

20.0 tons

max. road speed

40 kph

max. x-country speed

20 kph

active range by road

200 km

active range x-country

130 km

length

591 cm

width

286 cm

height

268 cm

engine

300 hp; 12 cylinder

armament

1 x KwK24 75mm (turret); 1 x 7.92mm MG (turret); 1 x 7.92mm MG (bow)

hull front armour

30 mm

hull side armour

20 mm

hull rear armour

20 mm

hull roof armour

11 mm

turret front armour

30 mm

turret side armour

20 mm

turret rear armour

20 mm

turret roof armour

10 mm

Click Here for more information about the Pzkpfw IV

Sources:

German Tanks of World War II - The complete illustrated history of German armoured fighting vehicles 1926-1945, F.M. vonSenger und Etterlin (Galahad Books, NY: 1969)

Panzer-Division 1935-1945 (1) The Early Years 1935-1941, Robert Michulec (Concord Publications, Hong Kong: 2000)
